12 contributions to CutterUp Diesel Lab
Ongoing low oil pressure
On cold startup I have around 40 psi of oil pressure. I changed out the spring and plunger in the oil filter head and after it gets up to temp here is the oil pressure I have. Is this likely a pressure relief valve issue? I have a new one and will be pulling the oil filter head and oil cooler out today and replacing the relief valve. Is there any other causes of low oil pressure that I may be missing? Engine sounds good and has no odd noises. I’m going to be cutting the oil filter apart and inspecting everything as well.
Ongoing low oil pressure
0 likes • 20d
@Robert Winkworth what would be the best way to go about this? Taking one of the plugs out on the top and using a fluid extractor? If aerated does that mean the pressure relief is no good?
1 like • 20d
@Brent Nowell no on the oil bypass system. I just put the bottom end together on this thing earlier this year. Crank was balanced and polished, Did main studs and had it align honed and mains measured from .003 to .0035 and had rods resized because of using arp rod bolts and they measured .002 to .003 and crank had .007 of end play. In theory bottom end should be good. So far it sounds good and I went through all the rocker assemblies and replaced any bad ones that had any galling when assembling the engine. Had great pressure on first several startups. Only thing I didn’t go through was the oil filter head so I’m praying pressure relief is the issue.
Oil pressure sender?
This engine has about 1500 miles on it. I bought the truck not running so I don’t know what it did or didn’t do before. Anyways it recently just started showing a drop in oil pressure down to zero after being up to operating temp and sitting at idle for awhile. I just barely tap the throttle then it’s fine. Just wondering if this is a common issues with the oil pressure senders on these. To my knowledge it’s original. 2007 5.9 I just got the correct fittings to hook my wet gauge up and watch it while the dash shows a sudden drop in pressure
Oil pressure sender?
0 likes • 30d
@Brent Nowell I’ll have to see if I can find it. And a mechanical gauge that’s plumbed into the oil galley or wherever you hook it up too that actually has fluid go to the gauge so you get a true accurate reading
1 like • 24d
@Brent Nowell thank you!! I actually finally got my gauge threaded into the oil galley in one of the ports next to the oil pressure sensor. It does seem like I do have low oil pressure for some reason. I’m going to be making a post with a video
New belt and components, belt keeps walking off
Man this truck I’ve been bringing back to life keeps fighting me. The belt keeps walking off. I had a new green gates belt that’s probably not in new condition anymore. When I put this engine together I put a new ac compressor, new idler pulley, new water pump, and new tensioner. Everything seems to spin straight and true. Within 10-15 seconds of running the belt walks halfway off the damper, power steering pump, fan, ac compressor and tensioner.

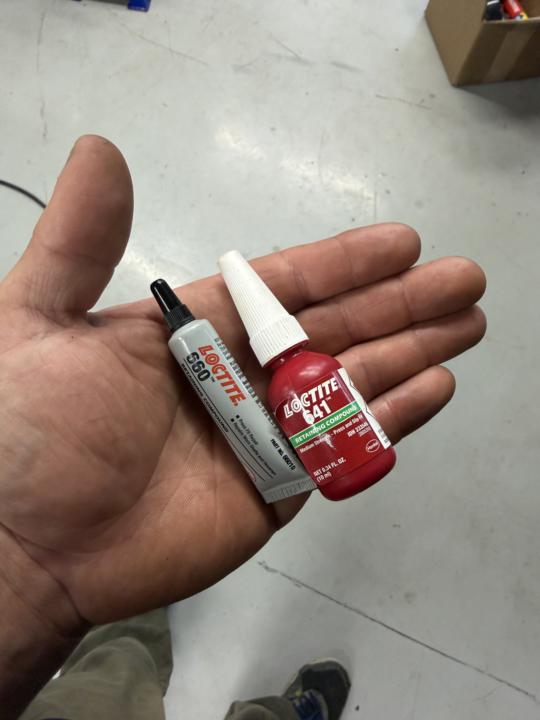

Expansion plug retaining compound
I believe I finally found a leak I’ve been chasing. To correct it I’m going to be replacing an expansion plug for the j jet oil galley at the back of the block. Which loctite product do you guys recommend? I believe I used blue loctite on original install. I’m considering one of these 2 retaining compounds. Loctite 641 or 660. Which works the best and has the best guarantee of sealing. I really don’t want to pull this transmission again lol
Expansion plug retaining compound
Still leaking
Well, unfortunately the only leak I have is still coming from behind the adapter plate. This is a new engine I built. I’ve posted about this 2 other times on here. I’ve removed the trans twice and replaced the oring and put rtv on both sides of it. The last time I pulled the trans I also replaced one of the expansion plugs that looked slightly suspicious.I used retaining compound on when installing. I also scraped the block and adapter plate of any paint and cleaned all surfaces. I’m at whits end on this. This will be my 4th time trying to get it sealed up. I’m not sure what else to do at this point. Can I put thread in plugs for the oil galley expansion plugs? I’m not sure if it’s even the plug or cam seal. You can’t clearly tell where it’s coming from each time I’ve pulled it back apart. I’ve never had issues with leaks back there any other time I’ve put together an engine or removed the adapter plate
