Jan 6 β’Β
Finished Assembly Section
Just finished assembly section. Very helpful project to learn different parts of the workflow. One question I have is: in the end component P2 ended up not fixed in my assembly because I was running interference detection. I couldn't figure out how to have the component fixed and not interfere with components P4 when it rotates. Any ideas?
Dec '24 β’Β
Finished With Part Section

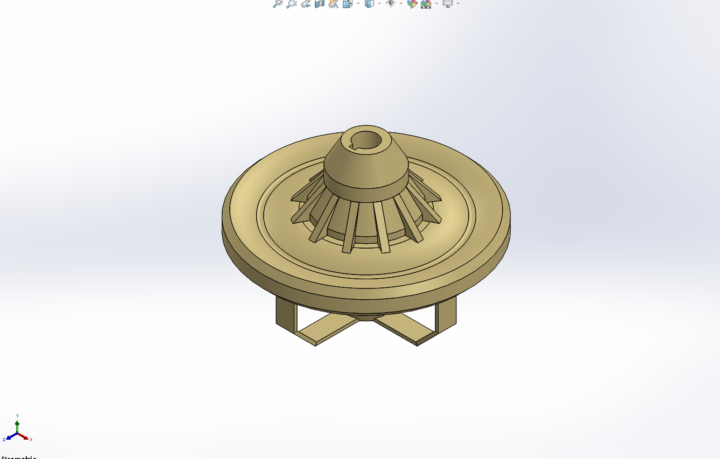

Just finished the part section of the beginners course. This is my final project. I felt I was too reliant on following along with what Aryan was doing on screen instead of thinking through a solution for myself so I decided to challenge myself to fix the blocked keyhole error that's in the video.
2 likes β’ Dec '24
@Eric Nadeau Thank you! I will check these out. What I did was move the handle sketch further out from the center of the so that it was not interfering with the key hole. I re-sketched it and dimensioned the border of the handle to begin where the keyhole ends by indicating that the midpoint of the edge of the sketch should be X millimeters away from the center, the same number that is the radius of the center cut plus the height of they keyhole rectangle!
2 likes β’ Dec '24
@Eric Nadeau oh this is so helpful thank you. i keep getting stuck going about doing things in the least efficient ways.
Jul '24 β’Β
π Welcome (START HERE) ! π
1. Watch This Video (MOST IMPORTANT!) β‘οΈ Click here to watch the getting started video! β¬
οΈ βββββββββββββββββββββββββββββββββββββββββββββ 2. π Essential Resources: - Bookmark this page. - Download the Skool app: Download for Android OR Download for Apple βββββββββββββββββββββββββββββββββββββββββββββ 3. βοΈ Quick Onboarding: - Fill out this mandatory onboarding form (Takes 5 mins). βββββββββββββββββββββββββββββββββββββββββββββ 4. π Introduce Yourself: - Introduce yourself by commenting on this post. Here is a template: -- Name: -- Age: -- Location: -- Reason to learn SOLIDWORKS: -- A summary of your background: βββββββββββββββββββββββββββββββββββββββββββββ
4 likes β’ Dec '24
Hi everyone, I'm Troy. I'm from the United States and I'm 27 years old. I want to learn Solidworks to advance in my career. I was hired as a mechanical designer for a team building an MRI machine. I studied architecture in school and my last position was at the makerspace of an engineering school.
1 like β’ Dec '24
@Troy Brocato Troy!
