Hey, I did the assembly project from the beginners module and decided before doing the assembly make the parts myself instead of using the downloadable ones. I used the drawings to create the parts but I'm not sure if I am missing something in the drawing for part 1 or if the dimension is missing but I assumed it while making it using educated guess from other dimensions around it and also used measure feature to check from the downloadable part. But just wanted to ask if they are missing or not and show what I found. For reference I made the dimension labelled A 15mm to be symmetric with the hole and B to be 4mm.

Over the past three months, I’ve been completely focused on my Solid Edge course, which is why I haven’t posted any updates. But I’m excited to share that I’ve passed the Associate-level certification exam! I’m now a certified Solid Edge user with practical experience, and I can’t wait to share my certificate soon.

https://www.trustpilot.com/review/think-cad.com Would mean a lot to me

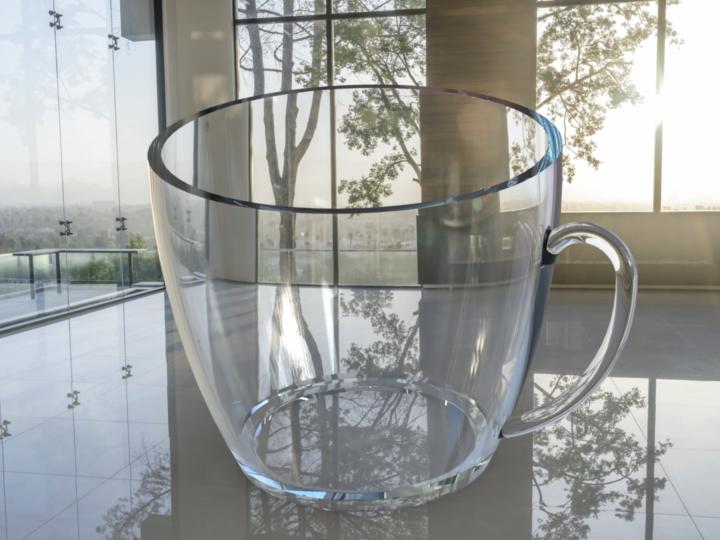

Excited to share a recent project I completed in SolidWorks – a detailed glass cup design! This render highlights the transparency and sleek form of the cup, capturing the realistic look of glass with precise material properties.
